Photovoltaic Products
Creating value for customers with high-quality products and services
Creating value for customers with high-quality products and services
Features
Rapid Shutdown:
Module-Level PV Rapid Shutdown. Ensure fire and O&M safety.
Active Safety:
1V shutdown voltage, a variety of shutdown methods, to prevent the problem before it occurs.
Convenient Installation:
Compatible with bolt and snap fastening, plug and play.
Higher Efficiency:
Ultra-low power consumption, wide operating voltage range.
PLC Communication:
SunSpec RSD compliance.
Appearance

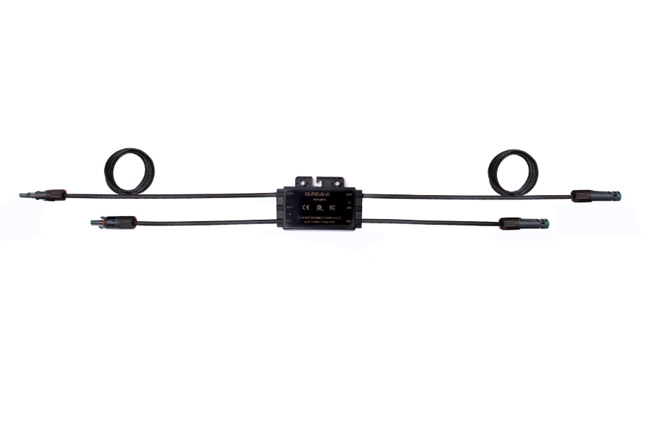

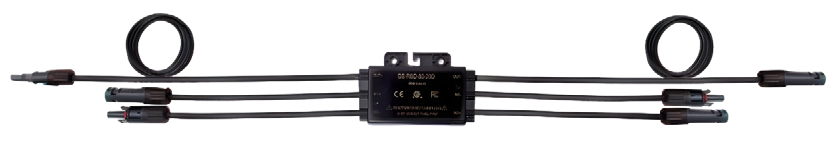

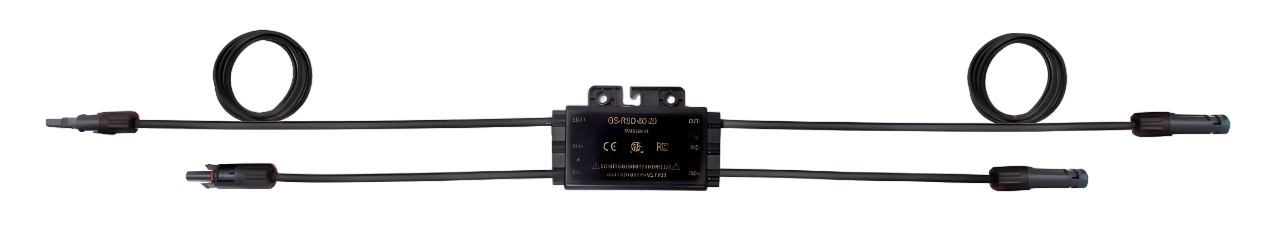

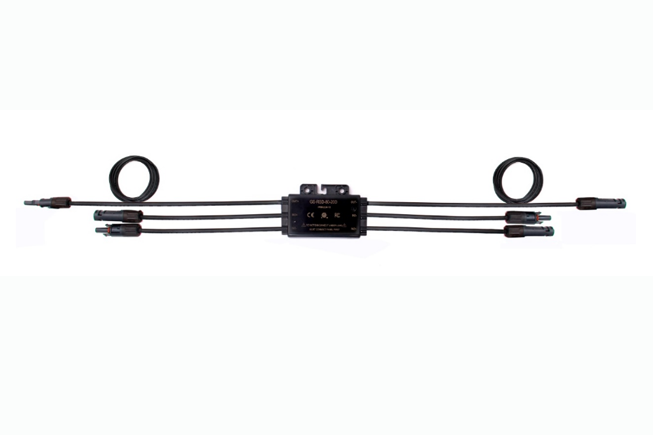

RSD For One PV Module RSD For Two PV Modules

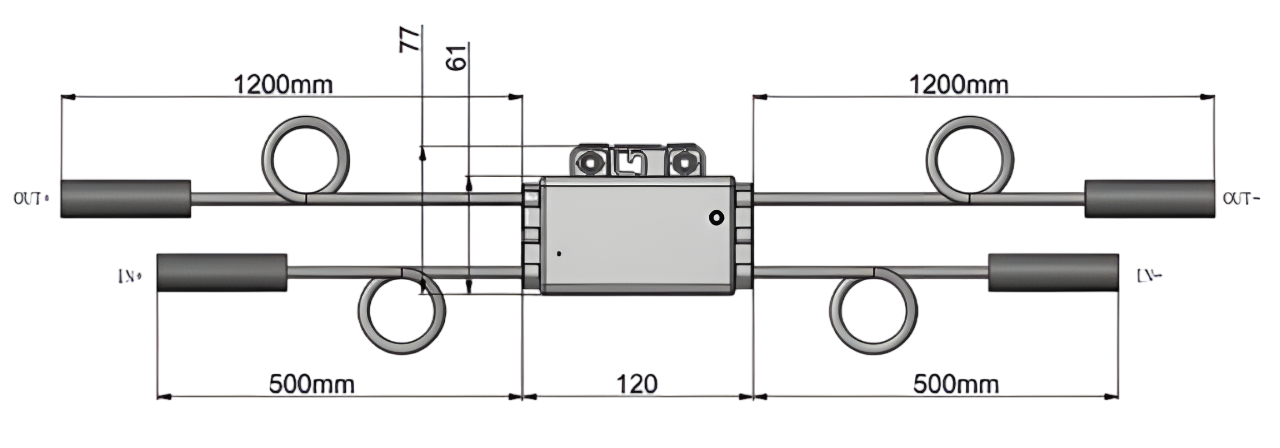

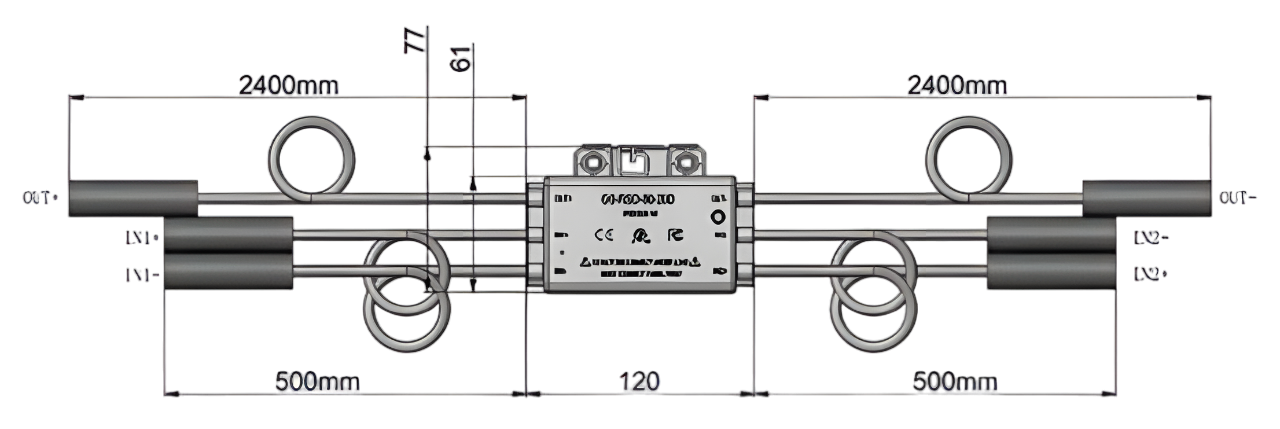

Dimensions

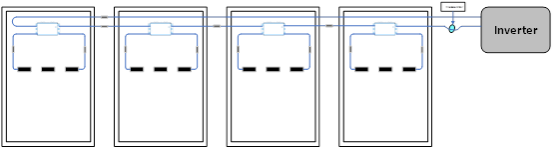

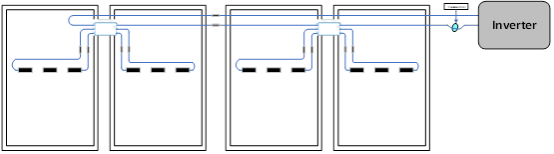

Wiring Diagrams
Ordering Information
GS-RSD-80-20S 20A, 700W, 1.2m Cable, MC4 Compatible, single channel input
GS-RSD-80-20D 20A, 700W, 1.2m Cable, MC4 Compatible, dual channel input
GS-RSD-80-25S 25A, 800W, 2.5m Cable, MC4 Compatible, single channel input
GS-RSD-80-25D 25A, 800W, 2.5m Cable, MC4 Compatible, dual channel input

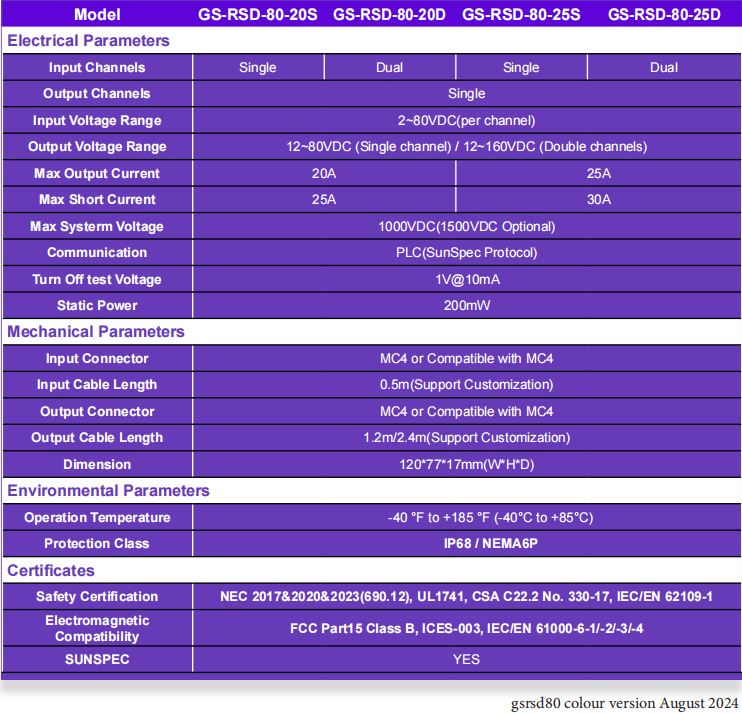

Specifications
